APOLLO series

詢價清單聯絡我們 +886-2-2680-5501 Facebook Instagram Line twitter

TOP

Product

Series Overview
Products

Transmitter specifications
Frequency range	FSK868MHz(20CH), FSK418Mhz(40CH)
Frequency controlled by	Quartz crystals
Antenna	Internal type, impedance as 50Ω
Operation temperature	-10%C ~ + 75*C
Source voltage	4×AA(1.5V)alkaline batteries or nickel rechargeable batteries

Receiver specifications
Frequency range	FSK868MHz(20CH), FSK418Mhz(40CH)
Frequency controlled by	Quartz crystals
HF sensitivity	-119 dBm
Operation temperature	-10%C ~ + 75*C
Source voltage	110/220/380/415VAC, 50 / 60Hz (Standard)
Size	204 X 121 X 65 mm (Box.1.1) , 270x 140 x 120 mm (BOX2.1)

APOLLO Model Option
Model	Control Points	Speed	Distance	Specifications
APOLLO C1-4PB	4 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-6PB	6 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-8PB	8 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-8PB/AB	8 pushbuttons	1 step	100M	A/B hoist use, w/EMS stop button
APOLLO C1-8PB/AL	10 pushbuttons	1 step	100M	alarm & light, w/EMS stop button

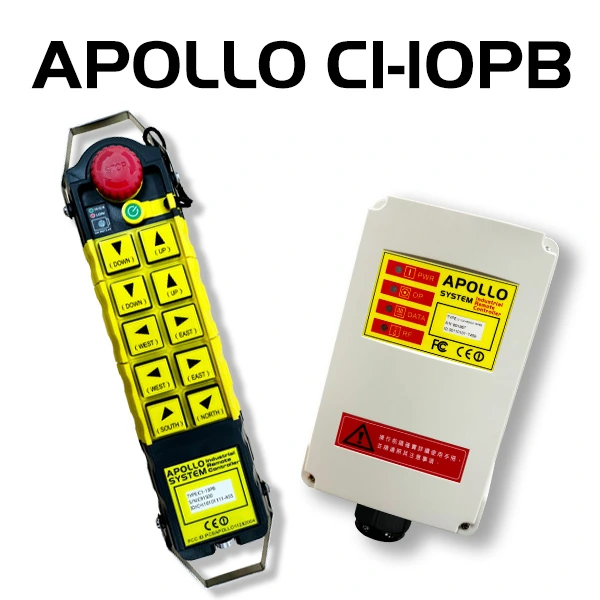

APOLLO C1-10PB	10 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-10PB/AB	10 pushbuttons	1 step	100M	A/B hoist use, w/EMS stop button
APOLLO C1-10PB/AL	10 pushbuttons	1 step	100M	alarm & light, w/EMS stop button
APOLLO C1-12PB	12 pushbuttons	1 step	100M	w/EMS stop button

APOLLO C2-4PB	4 pushbuttons	2 step	100M	EMS stop button
APOLLO C2-6PB	6 pushbuttons	2 step	100M	EMS stop button
APOLLO C2-8PB	8 pushbuttons	2 step	100M	EMS stop button
APOLLO C2-8PB/AB	8 pushbuttons	2 step	100M	A/B hoist use, w/EMS stop button
APOLLO C2-8PB/AL	8 pushbuttons	2 step	100M	alarm & light, w/EMS stop button
APOLLO C2-10PB	10 pushbuttons	2 step	100M	w/EMS stop button
APOLLO C2-10PB/AB	10 pushbuttons	2 step	100M	A/B hoist use, w/EMS stop button
APOLLO C2-10PB/AL	10 pushbuttons	2 step	100M	alarm & light, w/EMS stop button
APOLLO C2-12PB	12 pushbuttons	2 step	100M	w/EMS stop button
APOLLO C211	(2) pushbuttons (4) pushbuttons	2 step 1 step	100M	w/EMS stop button

APOLLO Model Option
Model	Control Points	Speed	Distance	Specifications
APOLLO H1-2PB	2 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-4PB	4 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-6PB	6 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-8PB	8 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-10PB	10 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-12PB	12 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H2-2PB	2 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H2-4PB	4 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-6PB	6 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-8PB	8 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-10PB	10 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-12PB	12 pushbuttons	2 step	100M	w/EMS stop button

Apollo Industrial Remote Control

APOLLO C2-8PB/AB

Apollo Industrial Remote Control

APOLLO C2-8PB/AL

Apollo Industrial Remote Control

APOLLO C2-10PB

Apollo Industrial Remote Control

APOLLO C2-10PB/AB

Apollo Industrial Remote Control

APOLLO C2-10PB/AL

Apollo Industrial Remote Control

APOLLO C2-12PB

Apollo Industrial Remote Control

APOLLO C211

Apollo Industrial Remote Control

APOLLO H1-2PB

Apollo Industrial Remote Control

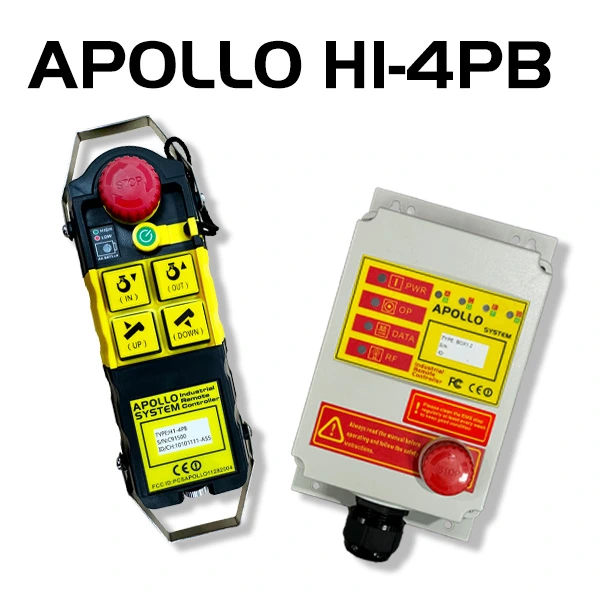

APOLLO H1-4PB

Apollo Industrial Remote Control

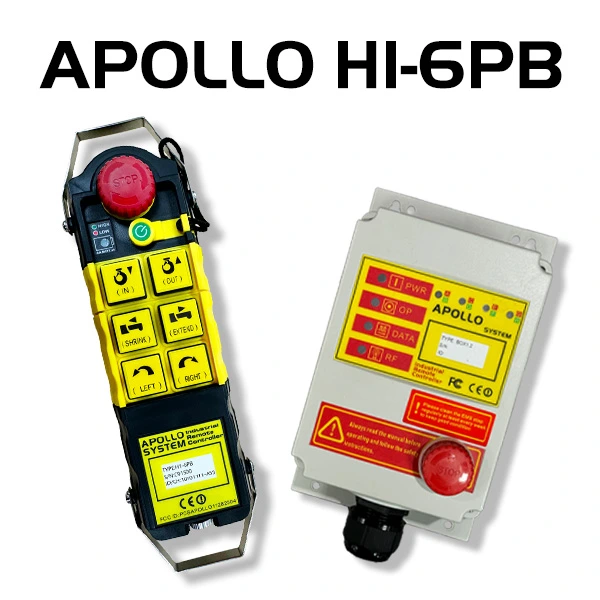

APOLLO H1-6PB

Apollo Industrial Remote Control

APOLLO H1-8PB

Apollo Industrial Remote Control

APOLLO H1-10PB

Product

APOLLO series

System Features:

Modular design allows for easy upgrade to different models, unnecessary prime cost be reduced

European standard switches inside, high sensitivity, long life with gold-plated connectors.

Anti-water/shock/dust PA/PC case, suitable for the worst environment with international standard EMS button on the top.

Internal antenna design both in transmitter & receiver, avoid the possibility of brake.

Easy function-setting by PC.

Enclosure as IP67, easy installation.

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Apollo Industrial Remote Control

Transmitter specifications
★custom-made Stickers is available on demand
Transmitting power	< 10mW
Security codes	256 sets
Enclosure	IP65
Frequency range	FSK868MHz(20CH), FSK418Mhz(40CH)
Frequency controlled by	Quartz crystals
Antenna	Internal type, impedance as 50Ω
Operation temperature	-10%C ~ + 75*C
Source voltage	4×AA(1.5V)alkaline batteries or nickel rechargeable batteries

Receiver specifications
★custom-made voltage is available
Antenna	Internal type, impedance as 50Ω
Relay	10A, 250VAC
Enclosure	IP67
Consumption	< 12W
Frequency range	FSK868MHz(20CH), FSK418Mhz(40CH)
Frequency controlled by	Quartz crystals
HF sensitivity	-119 dBm
Operation temperature	-10%C ~ + 75*C
Source voltage	110/220/380/415VAC, 50 / 60Hz (Standard)
Size	204 X 121 X 65 mm (Box.1.1) , 270x 140 x 120 mm (BOX2.1)

APOLLO Model Option
Crane/Hoist(AC)
Model	Control Points	Speed	Distance	Specifications
APOLLO C1-4PB	4 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-6PB	6 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-8PB	8 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-8PB/AB	8 pushbuttons	1 step	100M	A/B hoist use, w/EMS stop button
APOLLO C1-8PB/AL	10 pushbuttons	1 step	100M	alarm & light, w/EMS stop button
APOLLO C1-10PB	10 pushbuttons	1 step	100M	w/EMS stop button
APOLLO C1-10PB/AB	10 pushbuttons	1 step	100M	A/B hoist use, w/EMS stop button
APOLLO C1-10PB/AL	10 pushbuttons	1 step	100M	alarm & light, w/EMS stop button
APOLLO C1-12PB	12 pushbuttons	1 step	100M	w/EMS stop button

APOLLO C2-4PB	4 pushbuttons	2 step	100M	EMS stop button
APOLLO C2-6PB	6 pushbuttons	2 step	100M	EMS stop button
APOLLO C2-8PB	8 pushbuttons	2 step	100M	EMS stop button
APOLLO C2-8PB/AB	8 pushbuttons	2 step	100M	A/B hoist use, w/EMS stop button
APOLLO C2-8PB/AL	8 pushbuttons	2 step	100M	alarm & light, w/EMS stop button
APOLLO C2-10PB	10 pushbuttons	2 step	100M	w/EMS stop button
APOLLO C2-10PB/AB	10 pushbuttons	2 step	100M	A/B hoist use, w/EMS stop button
APOLLO C2-10PB/AL	10 pushbuttons	2 step	100M	alarm & light, w/EMS stop button
APOLLO C2-12PB	12 pushbuttons	2 step	100M	w/EMS stop button
APOLLO C211	(2) pushbuttons (4) pushbuttons	2 step 1 step	100M	w/EMS stop button

APOLLO Model Option
Vehicle-specific(DC)
Model	Control Points	Speed	Distance	Specifications
APOLLO H1-2PB	2 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-4PB	4 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-6PB	6 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-8PB	8 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-10PB	10 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H1-12PB	12 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H2-2PB	2 pushbuttons	1 step	100M	w/EMS stop button
APOLLO H2-4PB	4 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-6PB	6 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-8PB	8 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-10PB	10 pushbuttons	2 step	100M	w/EMS stop button
APOLLO H2-12PB	12 pushbuttons	2 step	100M	w/EMS stop button
